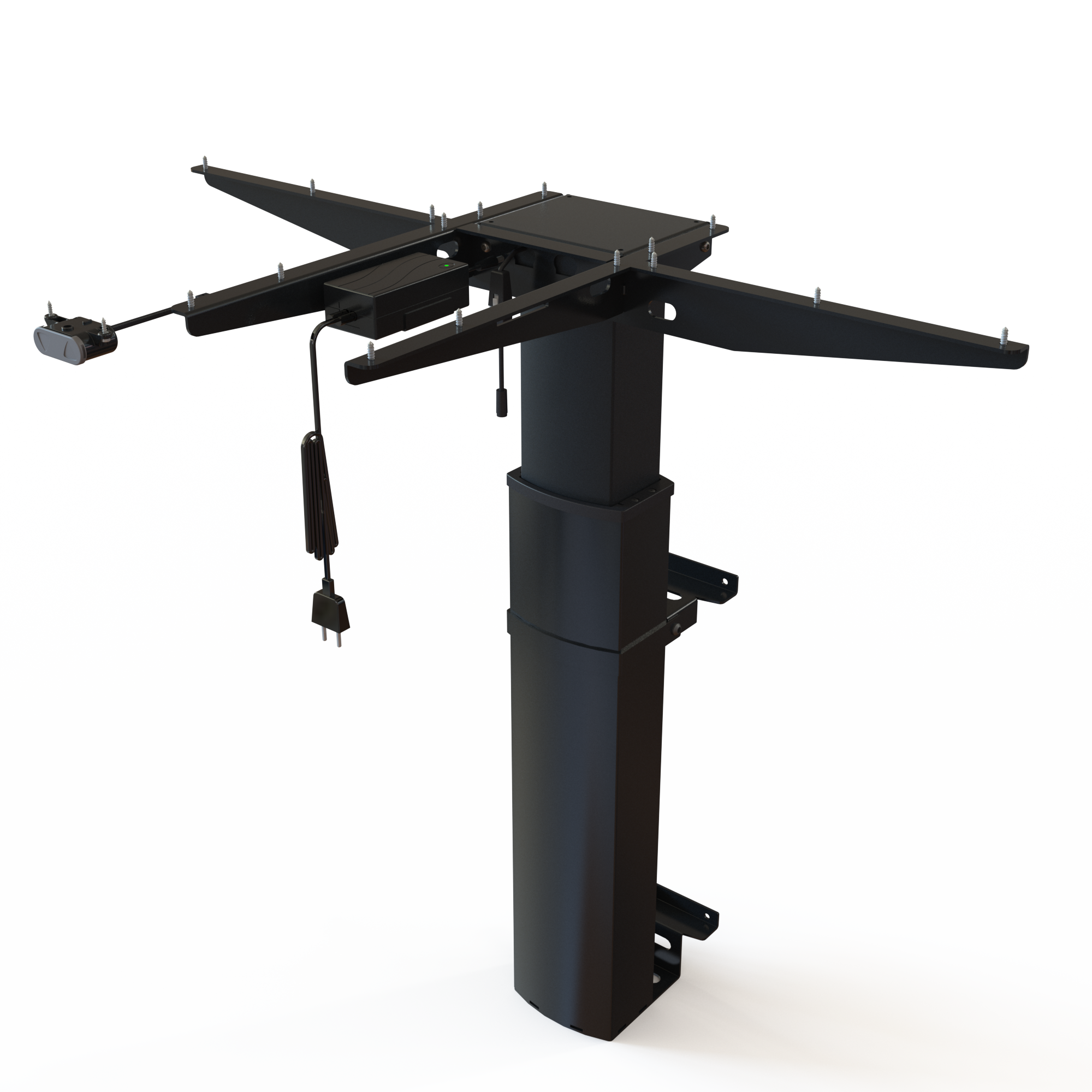

Wall mounted Electric Desk FrameElectric Desk Frame | 1-Column | Black

501-19 7BW
Item no.: 501-19 7BW
501-19 WALL is delivered with tabletop support and control panel — ready for plugin.

You can mount either of the two top support brackets.

Bracket A supports the following top sizes:
 Minimum top measurements: 95 x 55 cm
 Maximum top measurements: 140 x 100 cm

Bracket B supports the following top sizes:
 Minimum top measurements: 55 x 25 cm
 Maximum top measurements: 100 x 60 cm

Please note that some wall-types might need additional brackets to even out the load. The 79 mm between column and wall allows for mounting a cable tray.
Other color combinations
Frame color:
Frame size:
Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A product can consist of several components. For example 3 boxes: Table top, Legs and Cross beam support. Number, description, item number, weight and volume of the separate components are listed below.
Item no.:
501-19 7BW
Description:
Wall mounted Electric Desk FrameElectric Desk Frame | 1-Column | Black
Stock status
AmountItem no.DescriptionStock
1501-X1 XBXXXLifting column, black
1501-XX 7XPOWAPower Box A

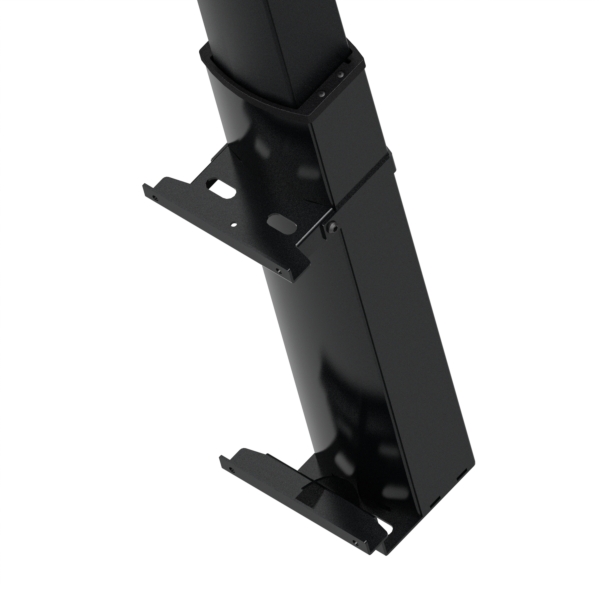

1501-19 WBWallbracket 501-19, black
Total
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X1 XBXXX70181612,005704142139516
501-XX 7XPOWA221190,705704142108666
501-19 WB595096,105704142133731
