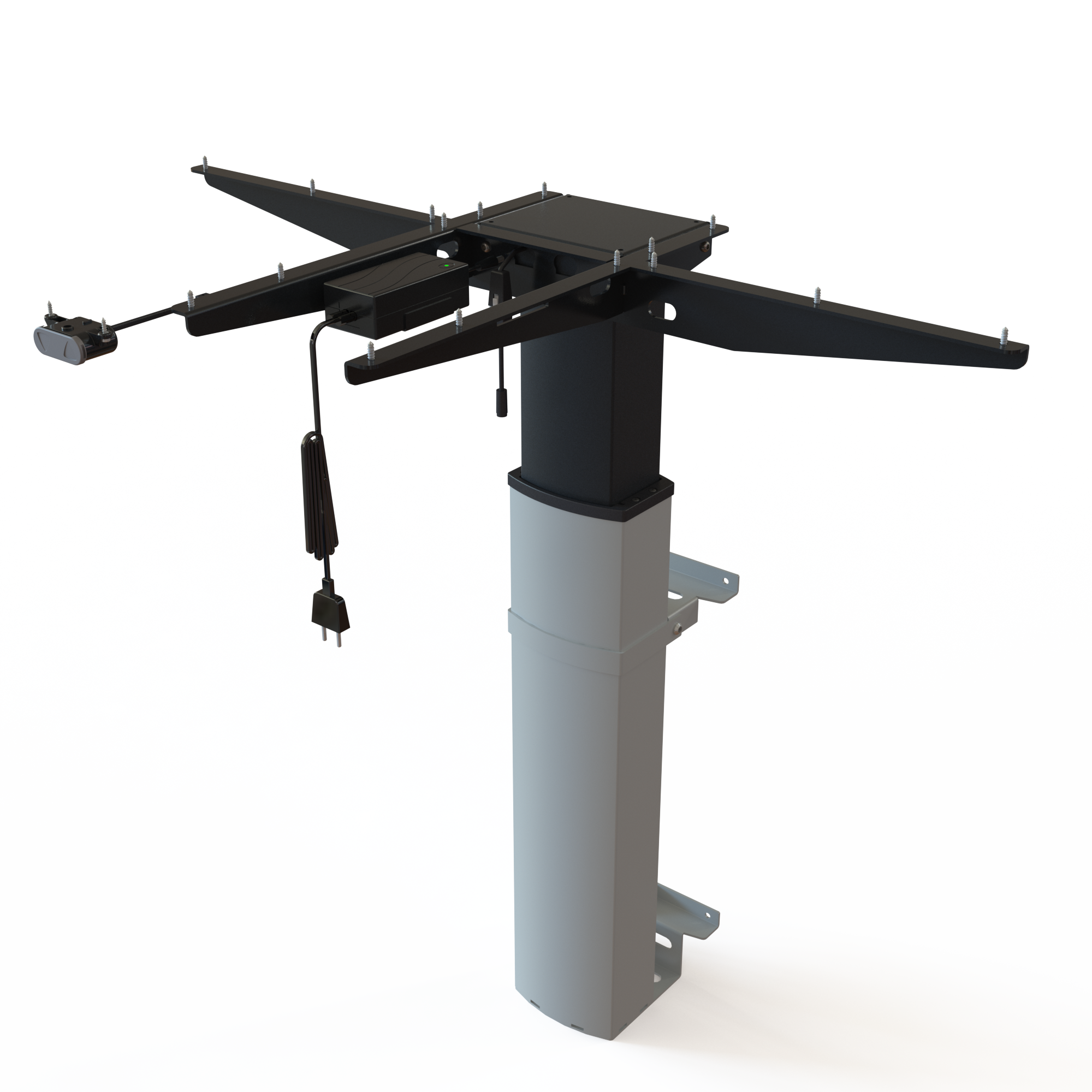

Wall mounted Electric Desk FrameElectric Desk Frame | 1-Column | Silver

Item no.: 501-19 7SW

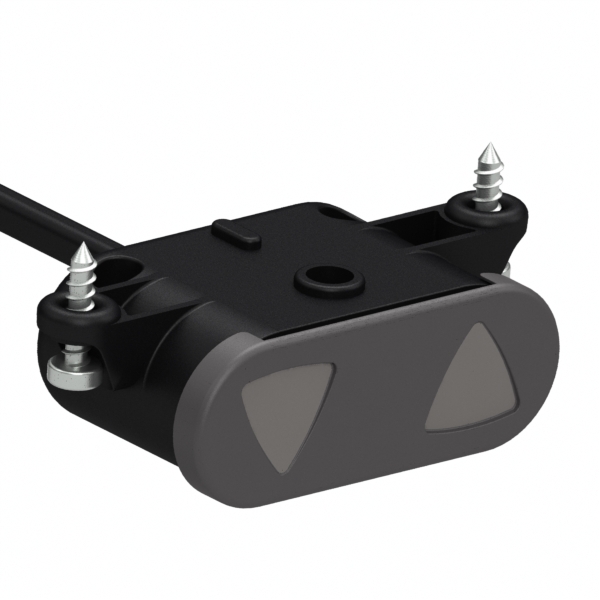

501-19 WALL is delivered with tabletop support and control panel — ready for plugin.

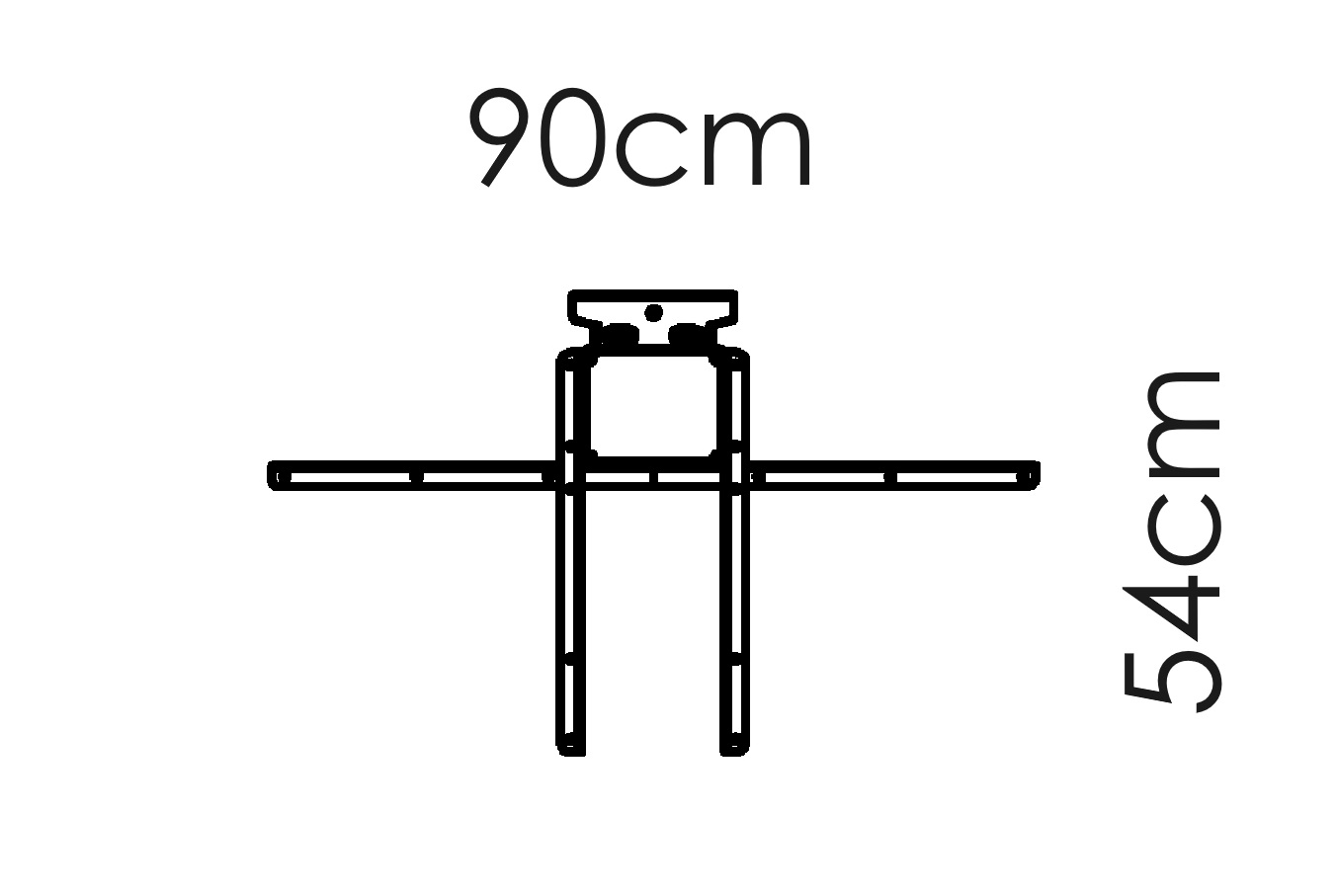

You can mount either of the two top support brackets.

Bracket A supports the following top sizes:

Minimum top measurements: 95 x 55 cm

Maximum top measurements: 140 x 100 cm

Bracket B supports the following top sizes:

Minimum top measurements: 55 x 25 cm

Maximum top measurements: 100 x 60 cm

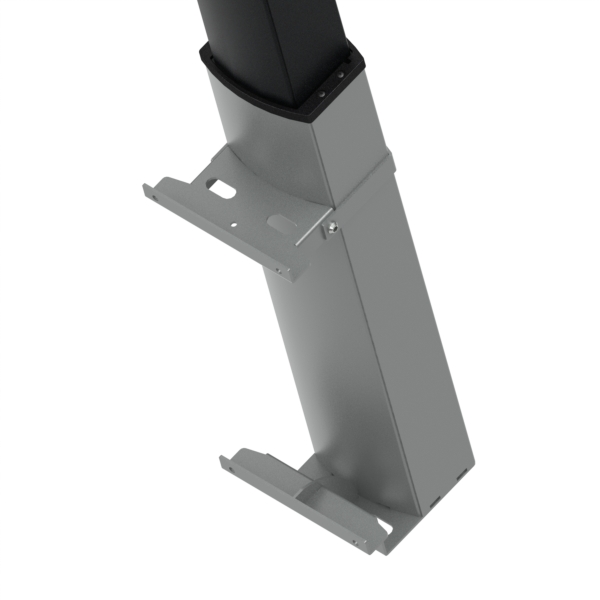

Please note that some wall-types might need additional brackets to even out the load. The 79 mm between column and wall allows for mounting a cable tray.

Other color combinations

88 kg

12 min.

Frame color:

Frame size:

Detailed product information

Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)

Stock and components

A product can consist of several components. For example 3 boxes: Table top, Legs and Cross beam support. Number, description, item number, weight and volume of the separate components are listed below.

Item no.:

501-19 7SW

Description:

Wall mounted Electric Desk FrameElectric Desk Frame | 1-Column | Silver

Stock status

Amount	Item no.	Description
1	501-X1 XSXXX	Lifting column, silver
1	501-XX 7XPOWA	Power Box A
1	501-19 WS	Wallbracket 501-19, silver

Total

Component information

Item no.	Length (cm)	Width (cm)	Height (cm)	Weight (kg)	EAN
501-X1 XSXXX	70	18	16	12,00	5704142111987
501-XX 7XPOWA	22	11	9	0,70	5704142108666
501-19 WS	59	50	9	6,10	5704142114995
